How to Choose a Presser Foot for Industrial Sewing Machines

By Aashu, owner of Stitch Partner, a store for industrial sewing machine spare parts in India.

What a presser foot does

The presser foot holds fabric flat against the feed dog so every stitch is even. A bent, worn or wrong foot shows up as skipped stitches, puckering or fabric that drifts off the line.

Match the foot to your machine first

Check three things before ordering: the machine type (single-needle lockstitch or overlock), the brand and model, and the shank style. A foot that looks right can still be the wrong fit for your machine.

Pick the foot by the job

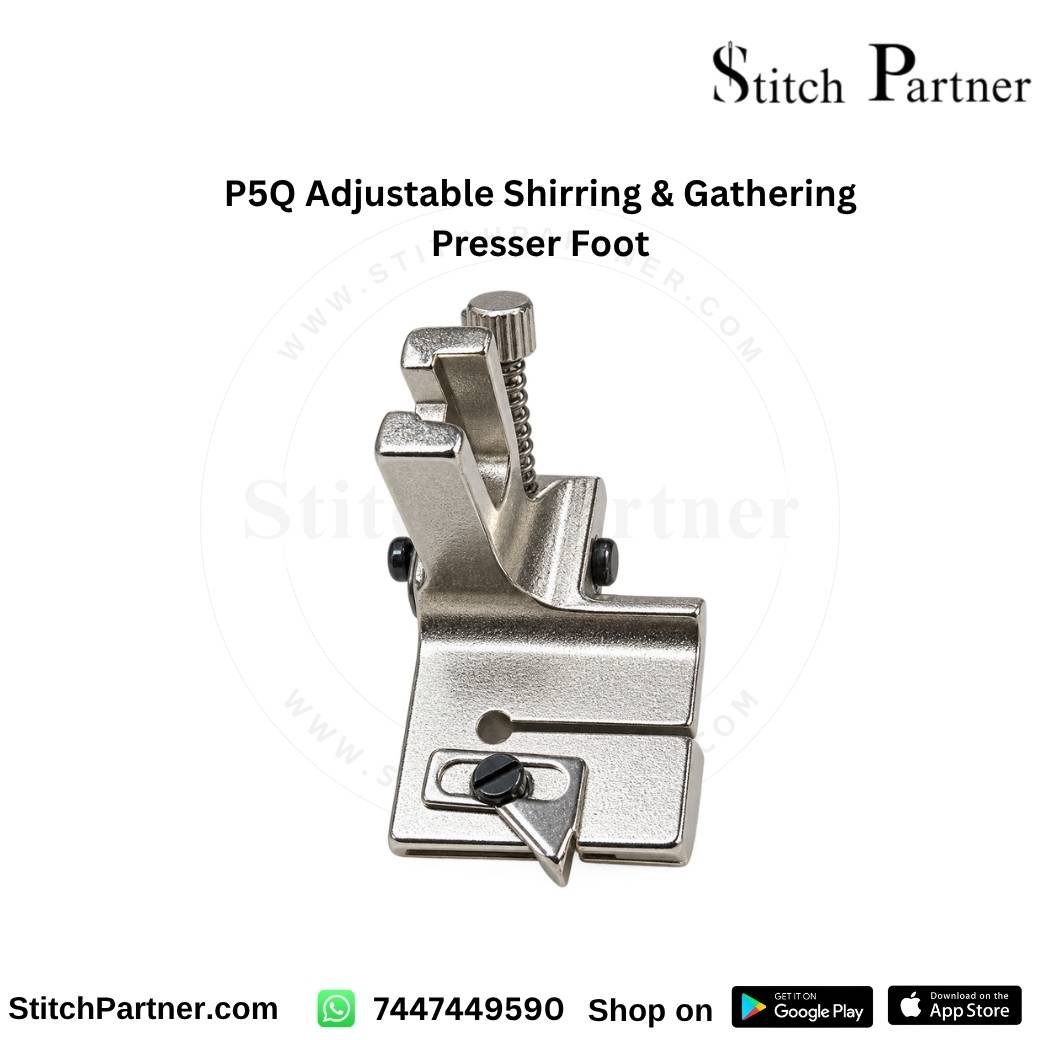

• Gathering and frills: the P5Q adjustable shirring and gathering presser foot gathers fabric evenly while you sew.
• Tape, elastic and binding: the S10B adjustable tape guide presser foot keeps tape and lace running straight on lockstitch machines.
• Overlock machines: the 274000-B presser foot arm for Pegasus EX3200 and the Pegasus 274016A0 hand lifter set cover common wear parts.

When to replace a presser foot

Replace it if the sole is scratched or bent, the screw will not hold, or stitches skip even with a fresh needle and correct thread tension.

Common presser foot problems and fixes

• Skipped stitches: the foot is too high, or its underside is worn flat. Lower the foot until it just holds the fabric, and replace the foot if the sole is grooved.
• Puckering: pressure is too heavy for the fabric, or the sole has scratches that drag the cloth. Reduce pressure, or switch to a Teflon-coated foot on slippery or sticky material.
• Fabric drifts off the line: you are using a plain foot where the job needs a guide. A tape guide foot or a compensating foot keeps the edge straight.
• Needle strikes the foot: the foot hole is too small for the needle, or the needle bar is out of line. Check the needle size first, then the foot position.

Which foot for which job

For a longer comparison, read the industrial presser foot types guide on Stitch Partner.

Frequently asked questions

Do presser feet fit every industrial machine?

No. Single-needle lockstitch machines usually take a screw-on foot that clamps to the presser bar, but sizes and shapes differ between brands and between model families. Check the machine type, brand and model before ordering, and compare with the foot you have now.

How often should a presser foot be replaced?

Replace it when the sole shows grooves or burrs, when it snags fabric, or when stitch quality drops even after the needle and thread are correct. In heavy daily use that can be every few months on a busy line.

Can I use a home sewing machine foot on an industrial machine?

Usually not. Home machines use snap-on shanks, while industrial machines use screw-on feet and a different presser bar. Buy feet made for your machine type.

Why does my fabric pucker even with a new foot?

Puckering is more often caused by too much presser pressure, wrong thread tension, a blunt needle or a worn feed dog than by the foot itself. Check these four before replacing anything else.
