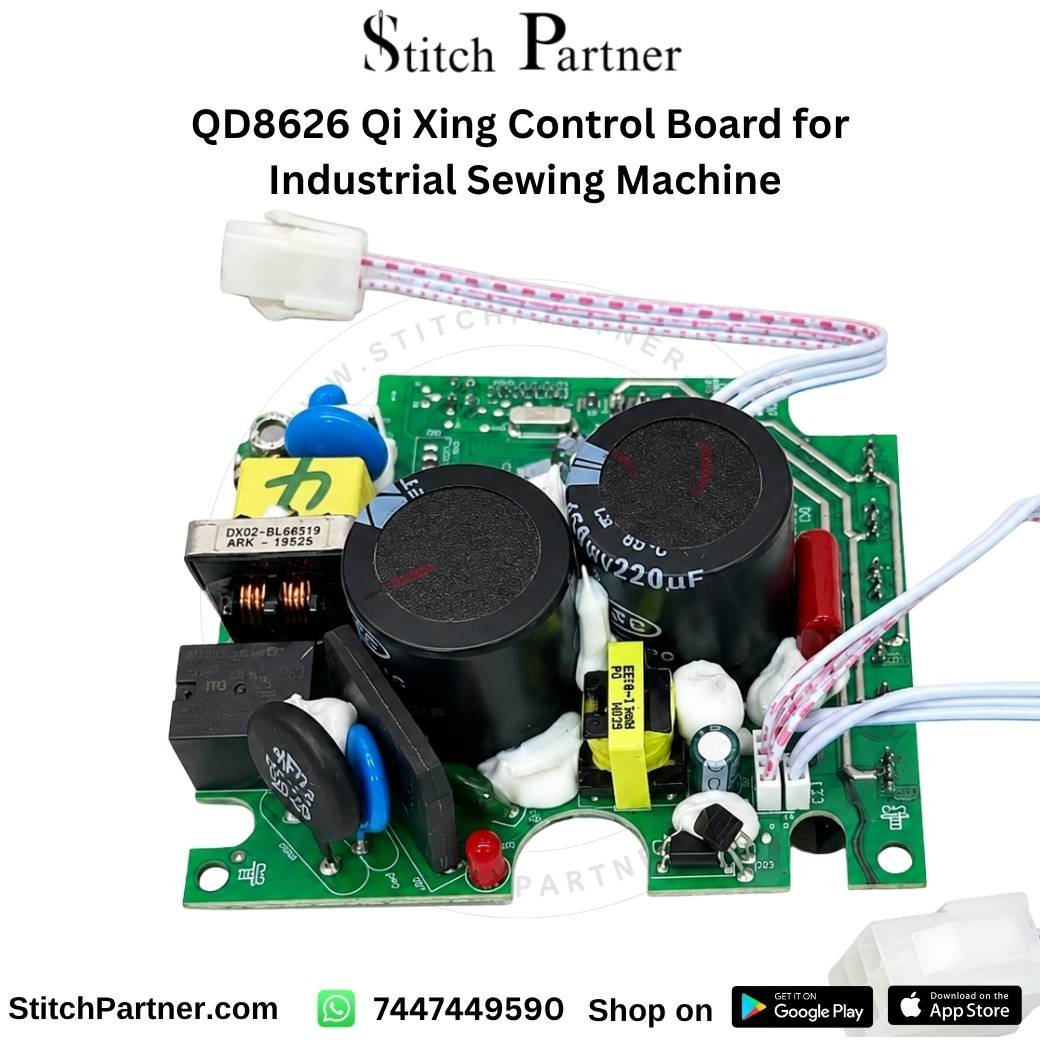

Sewing Machine Control Board (PCB) Replacement Guide
By Aashu, owner of Stitch Partner, a store for sewing machine control boards and spare parts in India.
Signs the board may be the problem
- The motor does not respond to the pedal, although power is on.
- The speed display is blank or shows wrong values.
- The machine runs at one speed only or stops without warning.
Check the pedal, wiring and power supply first, since a loose connector can look like a dead board.
How to pick the right replacement
Note the code printed on the old board, the machine or motor brand and model, and the connector layout. Boards from different makers can look alike but wire differently, so match the code and the connectors, not only the size.
Quick checks before buying a new control board
- Switch off, unplug and look at the board. Burnt marks, a blown fuse or a bulging capacitor point to a board fault.
- Check every connector is fully seated, especially the pedal and needle position sensor leads.
- Check the mains supply voltage. A low supply can mimic a dead board.
- Turn the handwheel by hand to rule out a mechanical jam.
- Note any error code shown and match it with the servo motor troubleshooting guide.
Information you need to match a replacement board
- Brand and model of the motor or control box.
- Any part number printed on the board or on the box label.
- Number of pins and shape of each connector, with a clear photo of the old board.
- Supply voltage and whether the unit has a display.
If the connectors or pin layout differ, the board will not work safely even if it looks similar. Send the photo to Stitch Partner before you order.
Typical board faults
- No display or no power light although the supply is good.
- An error code that returns straight after power-on.
- Speed does not change when you press the pedal.
- Motor jerks or stops, or the needle does not stop in position.
Frequently asked questions
Can one control board fit different motors?
Only if the connectors, pin layout and supply voltage match. Boards that look alike can have different pin layouts, so compare with a photo of the original before ordering.
Does a new board need setting up?
Some boards need basic settings such as maximum speed and needle position mode after fitting. Check the manual of your motor and set speed low first.
How do I know the capacitor is bad?
A bulging or leaking capacitor is a common sign. The board may also fail to power up or restart on its own. If you are not trained in electrical repair, have a technician check it, and wait a few minutes after unplugging because capacitors hold charge.
Should I replace the board or the whole motor?
If the motor turns freely, is not hot and the fault is a code or a dead display, the board is the usual cause and is cheaper to replace. If the motor is noisy or hot even without the machine, replace the motor as well.
